how to use g41 and g42 in cnc turning

In CNC turning, achieving precision is paramount. Whether you're machining complex contours or simple profiles, the tool radius plays a critical role in determining the accuracy of the final part. This is where cutter compensation, specifically G41 and G42 codes, becomes essential. These G-codes enable tool radius compensation, allowing the CNC machine to adjust the tool path automatically to account for the cutting tool's geometry. In this guide, we'll explore how to use G41 and G42 effectively in CNC turning , covering their functionality, programming steps, practical examples, and tips to avoid common mistakes.

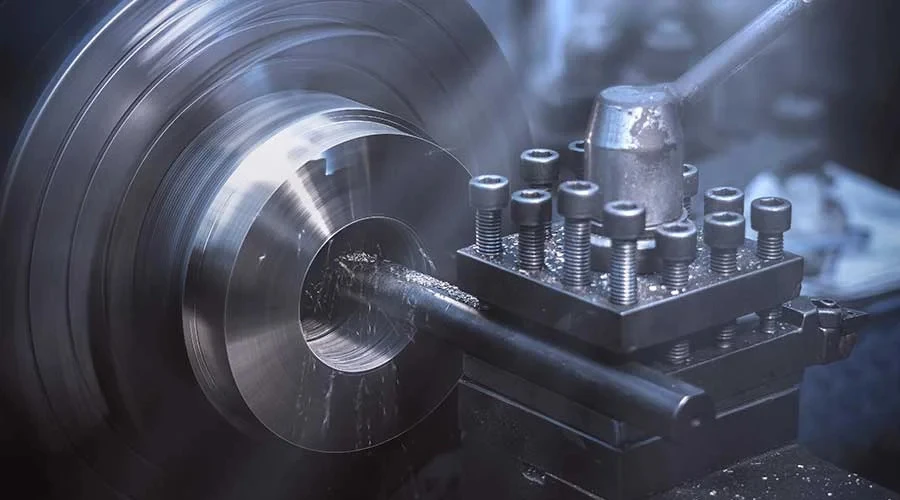

info-900-500

In CNC turning, G41 and G42 are G-codes used for tool compensation, specifically tool nose radius compensation. Unlike milling, where the cutting edge is typically a cylindrical tool, lathe tools have a small radius at the tip, known as the tool nose radius. Without compensation, the machine follows the tool path based on the tool's centerline, which can lead to dimensional inaccuracies due to the offset between the tool's center and its cutting edge.

G41: Enables left compensation, shifting the programmed path to the left of the tool's feed direction, relative to the workpiece contour.
G42: Enables right compensation, shifting the programmed path to the right of the contour.
G40: Cancels cutter compensation, returning the tool to its uncompensated path. Always use G40 after completing a compensated cut to avoid unintended offsets in subsequent operations.

By applying G41 or G42, the CNC system adjusts the tool path to follow the cutting edge rather than the tool's centerline, ensuring the machined part matches the intended design. Choosing between G41 and G42 depends on the tool's movement direction and the part's geometry. Misapplying these codes can result in machining outside the intended profile, compromising precision and surface finish.

In CNC turning, tool nose radius compensation accounts for the small radius at the tip of the cutting tool. Without compensation, the machine would cut based on the tool's centerline, causing deviations from the desired part dimensions. When G41 or G42 is active, the CNC system shifts the tool path to align with the cutting edge, ensuring dimensional accuracy.

The tool's orientation in the turret, defined by its quadrant setting (typically 1 to 4), determines how the machine interprets G41 or G42. For example:

An external roughing tool is often set to quadrant 3 (if the turret is above the spindle centerline).
An internal boring bar might use quadrant 2.
If the turret is below the spindle centerline, quadrant values are reversed (e.g., quadrant 3 becomes quadrant 1 for an external tool).

These settings ensure the machine offsets the tool in the correct direction. For instance, when machining an outer diameter (OD), G42 is typically used for external cuts, while G41 may be used for internal cuts, depending on the tool's feed direction and quadrant setup.

Tool diameter or radius must be entered into the machine's tool offset table. This value, combined with the quadrant setting, allows the CNC system to calculate the correct offset, compensating for tool wear or variations in tool diameter after regrinding.

To use G41 and G42 effectively, follow these steps to ensure a precise and safe machining process:

Set the Tool Radius: Enter the tool radius in the machine's tool offset (geometry) table. This informs the CNC system how much to offset the tool path.
Program the Part Contour: Write the G-code based on the actual part contour, as the machine will handle the offset internally.
Activate Compensation: Insert G41 or G42 before the cutting operation begins, typically during a G01 (linear interpolation) move. Avoid activating compensation during G00 (rapid move) or circular moves to prevent path deviations.
Cancel Compensation: Use G40 to cancel compensation after the cutting pass, ideally in a G01 or G00 move, before retracting the tool.
Verify the Tool Path: Run a simulation or dry run to confirm the programmed path is correct, checking for collisions or overcutting.

Tip: Always activate cutter compensation in a straight-line move (G01) to ensure smooth entry. Activating G41 or G42 mid-cut or during an arc can cause unexpected deviations.

Here's a practical example of a CNC turning program using G41 for left compensation:

G21 ; Set metric units

G90 ; Absolute positioning

T0101 ; Select Tool #1 (e.g., external roughing tool)

M03 S1000 ; Start spindle at 1000 RPM

G0 X50.0 Z5.0 ; Rapid to starting position

G41 D1 ; Activate left compensation using offset D1

G1 X45.0 Z-20.0 F150 ; Linear cut with compensation

G0 Z5.0 ; Retract to safe position

G40 ; Cancel compensation

M05 ; Stop spindle

M30 ; End program

In this example:

D1 refers to the tool offset stored in the machine's tool table, specifying the tool radius.
G41 shifts the tool path to the left of the programmed contour, ensuring the cutting edge follows the desired profile.
G40 cancels the compensation to prevent unintended offsets in subsequent moves.

This approach allows the same program to be used with different tools, as the machine pulls the tool diameter or radius from the tool table, enhancing flexibility.

G41 and G42 are essential in the following scenarios:

Profile Cuts: When machining outer or inner diameters (OD/ID turning), compensation ensures the cutting edge follows the exact contour.
Finishing Passes: For high-precision parts requiring tight tolerances and superior surface finish, compensation corrects for tool radius variations.
Tool Changes or Wear: Compensation allows the same program to work with tools of different radii or after regrinding, accounting for tool wear.

Benefits include:

Simplified programming by eliminating manual offset calculations.
Improved consistency across multi-part jobs.
Flexibility to use different tools without rewriting G-code.
Enhanced precision for complex geometries, such as tapers, chamfers, or intricate contours.

G41 and G42 are particularly useful for inner hole turning, angled surfaces, or even threading, where precise control of the cutting edge is critical.

Misusing G41 and G42 can lead to costly errors. Here are common pitfalls and how to avoid them:

Activating Compensation Incorrectly: Activating G41 or G42 during a curve or G00 move can cause path deviations. Always enable compensation in a G01 move.
Choosing the Wrong Code: Using G41 instead of G42 (or vice versa) shifts the tool in the wrong direction, potentially ruining the part. Double-check the tool's feed direction and quadrant setting.
Forgetting G40: Failing to cancel compensation with G40 can lead to unexpected offsets in subsequent operations. Always include G40 at the end of a compensated cut.
Incorrect Tool Table Settings: Wrong tool radius or quadrant settings in the tool table can cause miscompensation. Verify tool orientation and turret position before machining.
Skipping Simulation: Running a program without simulation or dry run risks crashes or dimensional errors. Always test the programmed path in a safe environment.

Pro Tip: For complex parts, use CAD/CAM software to simulate the tool path and verify compensation. For manual programming, perform a dry run at a safe distance from the workpiece.

Different CNC control systems (e.g., FANUC, Siemens, Mach3) handle G41 and G42 similarly, but there are nuances:

Industrial Systems (FANUC, Siemens): These typically rely on a tool table where the tool radius and quadrant are pre-set. G41 or G42 is called without additional parameters (e.g., G41 D1), pulling data from the tool table.
Desktop CNC Machines: Smaller machines may use P or X values (e.g., G41 P5.0) to specify the offset directly, as they may lack a comprehensive tool table.
Tool Wear Compensation: Some systems allow dynamic adjustment for tool wear by updating the tool offset table, ensuring accuracy during long production runs.

When machining complex contours or threading, consider the tool's quadrant and the part's geometry carefully. For example, G41 is often used for internal boring, while G42 suits external turning. Always verify the tool path through simulation to ensure the compensation aligns with the intended surface finish.

Mastering G41 and G42 in CNC turning unlocks greater precision and flexibility in your machining processes. By understanding tool radius compensation, correctly programming these G-codes, and avoiding common pitfalls, you can achieve superior surface finish, maintain tight tolerances, and streamline production. Whether you're a beginner or an experienced CNC operator, using cutter compensation effectively ensures your parts meet exacting standards, even when dealing with tool wear or varying tool diameters.

For optimal results, always simulate your programs, verify tool table settings, and use G40 to cancel compensation appropriately. With these practices, G41 and G42 will become powerful tools in your CNC turning arsenal, enhancing both quality and efficiency.
